ATS Xtend™ Double Offline

Double your capacity and simultaneously collect samples from two dissolution testers.

Semi automated dissolution tester USP 1256 ATS Xtend double Offline
  • PRODUCTIVITY - Double your capacity and perform two dissolution tests in parallel with one dual-rack autosampler
  • FLEXIBLE - Collect dissolution samples in glass tubes, capped LC vials, or HPLC / UPLC wellplates
  • REPRODUCIBLE - Always take samples the same way from up to 16 vessels at repeatable withdrawal positions
  • SPACE - Reduce the overall system footprint by stacking one sample collector on two piston pumps
  • SOFTWARE - Operate your dissolution tester in full compliance with data integrity and 21 CFR part 11 requirements
  • PHARMACOPEIA - Compliant by design according to USP <711>, Ph. Eur. 2.9.3, and other Pharmacopeia
  • TEMPERATURE - Protocol the temperature of your dissolution medium inside each vessel

Automation

Dissolution process steps with a semi-automated Offline dissolution testing system.

Highlights

Collect from 16 vessels.

The ATS XtendTM double offline system allows to simultaneously take samples from up to 16 vessels. Withdrawn samples are automatically filtered and collected in glass tubes, capped LC vials, or wellplates. To collect samples from two dissolution tests, the SAM S sample manager is equipped with two separate racks - one rack per connected bath.

More

Automated sampling with AutoLift™, HollowShaft™, or stationary cannulas for AT Xtend dissolution tester.

AutoLift™ and HollowShaft™

How do you want to sample? The Xtend™ dissolution bath offers different possibilties - from AutoLift™ cannulas with motorized lift-in/out to HollowShaft™ sampling or stationary resident probes. Mimic your existing environment when replacing old dissolution tester - and pick the most suitable method to withdraw samples for a particular product.

MORE



100% Compliant.

Built on the success of preceding SOTAX dissolution testers, the ATS Xtend™ system can be flexibly configured for Apparatus 1/2/5/6 methods with different style paddles, baskets, rotating cylinders, and more. Compliant by design, the Xtend™ bath with self-centering vessels and fixed shaft height doesn't require any time-consuming adjustments for change-over.

MORE

Scale-up? It's simple.

The double ATS Xtend™ offline system increases your sample capacity without requiring extensive validation. Because the individual bath design and performance remain identical, capacity scale-up from a single system can be done without extra effort for method transfer. Procedures remain valid as the same XtendTM modules and components are used.

Collect dissolution samples offline with different capacities.

Extend your single system.

If you already operate an ATS XtendTM single offline system with a dual-rack SAM S sample manager, you can simply add another pump and bath to the system. Adding a second CP pump to the stackable design uses no additional bench space. Equipped with a second sampling module, your existing SAM S can now collect samples from two dissolution baths.

Modules

AT dissolution tester bath for manual and semi-automated testing.

AT dissolution tester

Xtend™ dissolution bath with flexible sampling & monitoring functions.

Benchtop pump with maintenance-free ceramic piston heads for dissolution tester USP 1256.

CP piston pump

Fast and powerful to push through filters and to handle foaming media.

WinsotaxPlus Dissolution testing software 21 CFR Part 11 compliant, controlling all aspects of data capture and analysis with customized reporting and exporting.

WinSOTAX®plus

Dissolution software to manage methods, results, and reports.

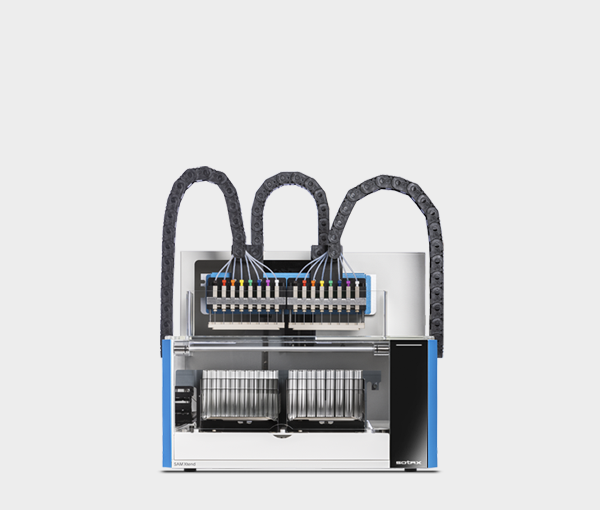

SAM sample manager

Dual-rack autosampler to collect samples from two dissolution baths.

Options

MPS media preparation station for manual and semi-automated dissolution testing systems.

MPS media station

Mobile unit to dispense heated and degassed medium into vessels.

Benchtop filter station to automatically change syringe filters for dissolution tester USP 1256.

FS filter station

Automated change of syringe filters for multi-timepoint methods (DR/MR).

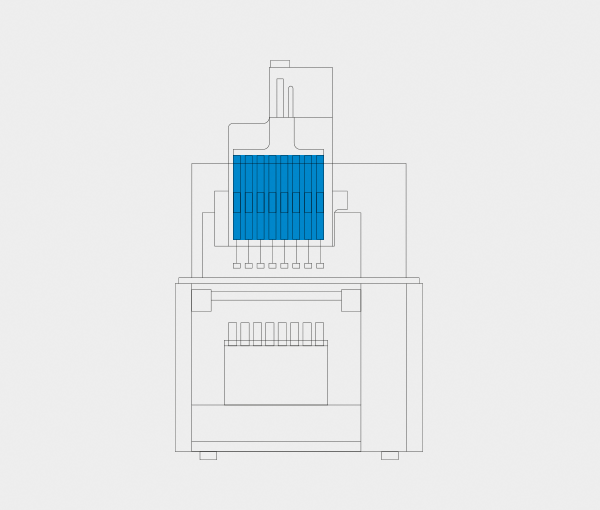

Syringe pump for semi-automated dissolution tester with offline systems.

SP syringe pump

Space-saving pumping module mounted on SAM sample collector.

Video monitoring of the dissolution process in each individual vessel.

CenterView™

Video monitoring of the dissolution process in each individual vessel.

Data management software for all methods, results, and users.

q-doc® software

All your data in one place with built-in 21 CFR part 11 compliance.
