SDT Offline

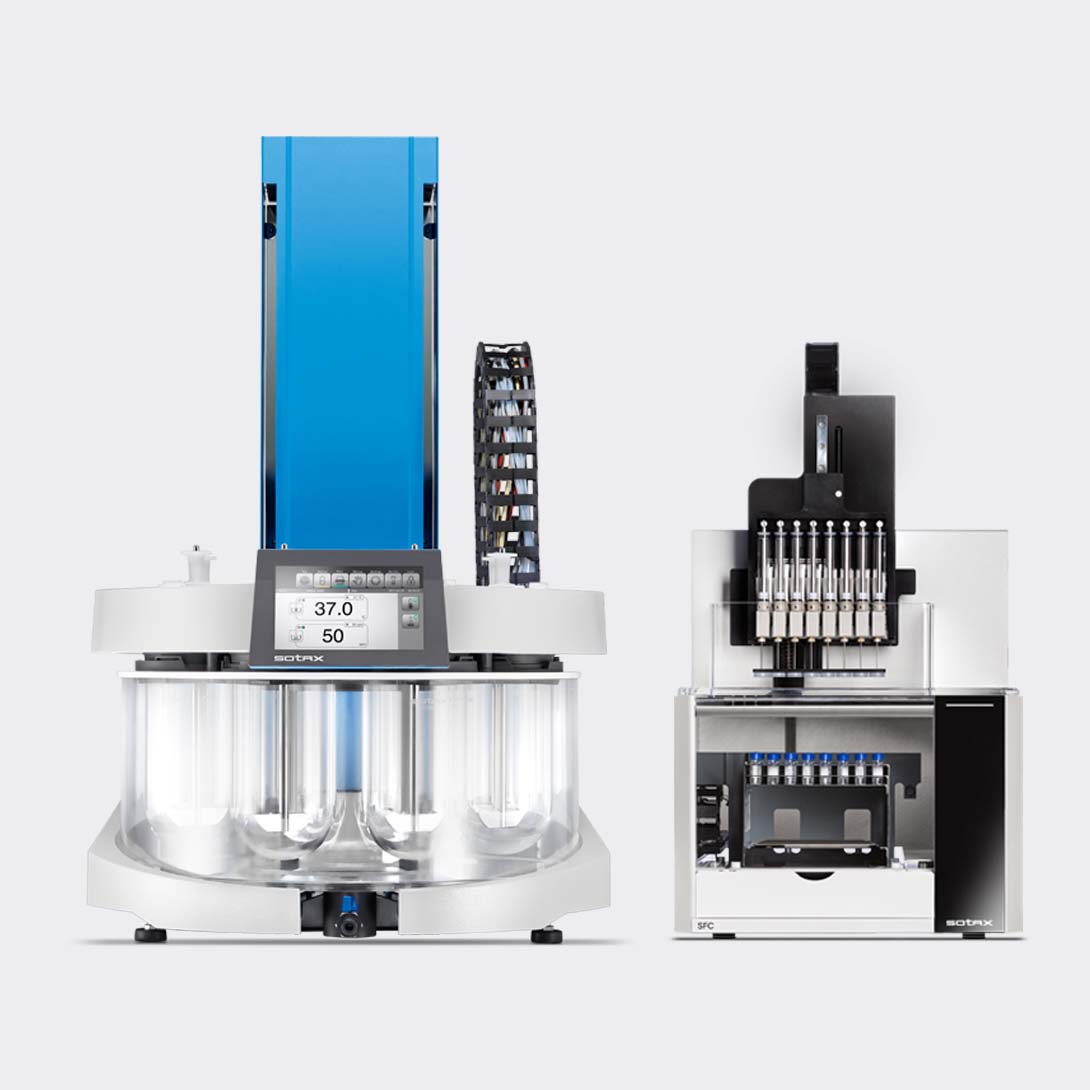

The SDT dissolution bath and the SFC complement each other ideally. Combining 40 years of experience with robust quality components, uncompromising ease of use and state-of-the-art technology, they offer flexibility and accuracy in an integrated design.

  • PERFECT VISIBILITY - Round bath design allows easy observation of the dissolution process
  • HIGH FLEXIBILITY - Handles all USP 1, 2, 5, 6 methods with a great variety of different stirrer and vessel types
  • FULL COMPLIANCE - Concept with self-centering vessels, quick-lock system, and fixed shaft height
  • EASY OPERATION - Fast and simple operation with the intuitive EasyTouch™ user interface
  • SPACE-SAVING - Smallest footprint in its class
  • HIGH ACCURACY - Integrated pump module uses high-precision syringes and samples simultaneously through 6 - 8 channels
  • SIMPLE HANDLING - All cleaning and handling processes are fast and simple to execute
  • SMALL TUBING VOLUME - Since the syringes do not move, the tubing can be shorter there with reducing dead volume.

Automation

Dissolution process steps with a semi-automated Offline dissolution testing system.

Highlights

Perfect visibility.

The round bath design of the SDT allows for easy observation of the dissolution process in each vessel at all times. Whether equipped with the optional CenterView™ video-monitoring or mirrored base plate, the SDT opens up a new dimension of observation possibilities for R&D visualization and OOS troubleshooting.

Dissolution testing vessel with USP2 paddle method

High flexibility.

The SDT easily handles all USP 1, 2, 5, 6 methods with a great variety of different stirrer and vessel types. Depending on your needs, the SDT is available with 6 – 8 positions and is suitable for all dosage forms (e.g. tablets, capsules and sinkers).

Full compliance.

Based on the SOTAX AutoCompliance™ concept with self-centering vessels, quick-lock system, and fixed shaft height – the SDT guarantees 100 % compliance with all harmonized Pharmacopeia. Paddle, basket, vessel and shaft are serial number marked.

Easy to use.

The SDT dissolution apparatus allows for fast and simple operation with the intuitive EasyTouch™ user interface. On top of that it also features easy set-up and method programming for manual or semi-automated test runs.

Space-saving.

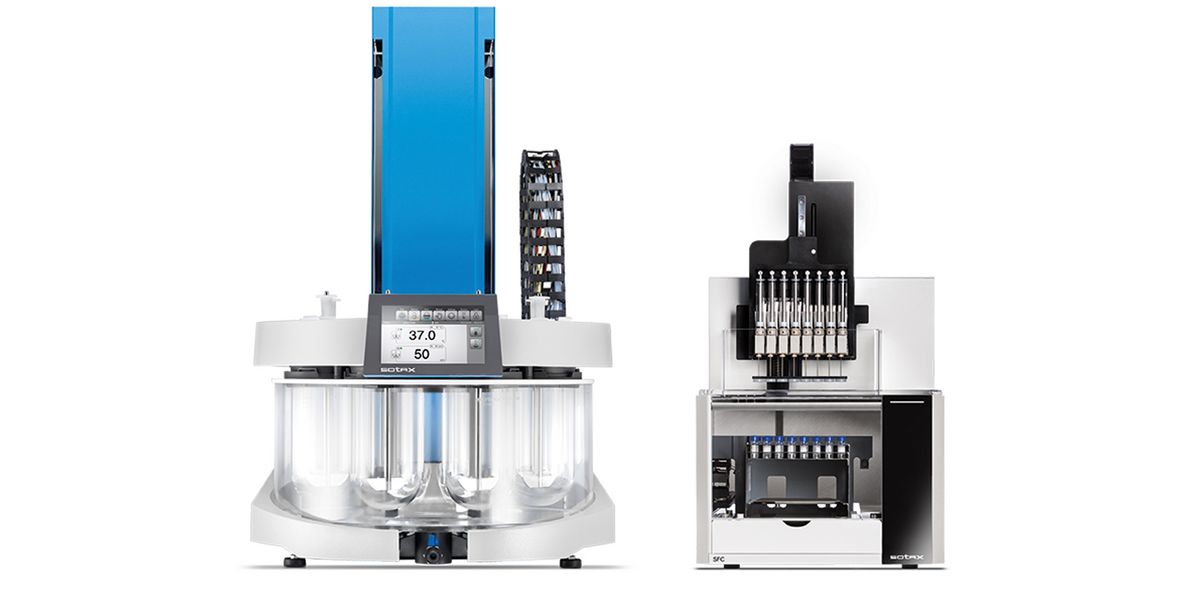

The SDT offline system with integrated SFC fraction collector has the smallest footprint in its class. The unique All-in-One design combines syringe pump, media replacement functionality for profile analysis, and fraction collector into one compact unit - reducing the footprint by 40% compared to other systems available on the market. SDT and SFC are installed next to each other. Since the syringes do not move, the tubing can be shorter there with reducing dead volume.

High accuracy.

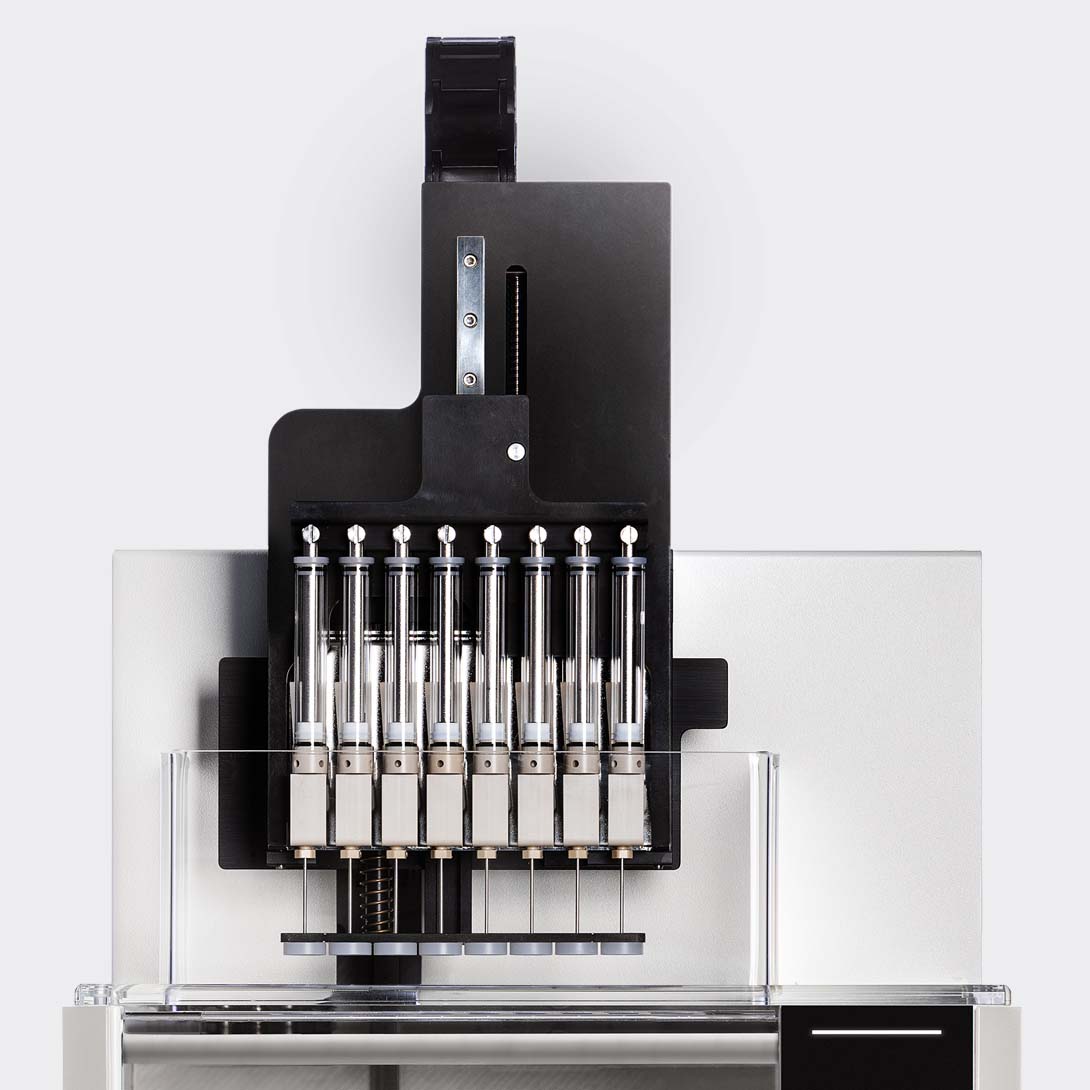

The integrated pump module uses high-precision 5 mL syringes and samples simultaneously through 6 - 8 channels - depending on your individual requirements. The sampling volume ranges from 1 - 10 mL with an accuracy of ±0.5 mL or ±10%.

Simple handling.

All cleaning and handling processes are fast and simple to execute. Thanks to its compact design, the SDT offline system also features reduced tubing volumes, making it easier to pre-rinse and less prone to carryover.

Individual video monitoring of each dissolution tester vessel throughout the test.

Small tubing volume.

SDT and SFC are installed next to each other. Since the syringes do not move, the tubing can be shorter there with reducing dead volume.

Modules

SDT dissolution tester

SDT dissolution bath with flexible sampling & monitoring functions.

SFC sample manager

Collect samples in tubes, capped LC vials, or vial plates for offline analysis.
